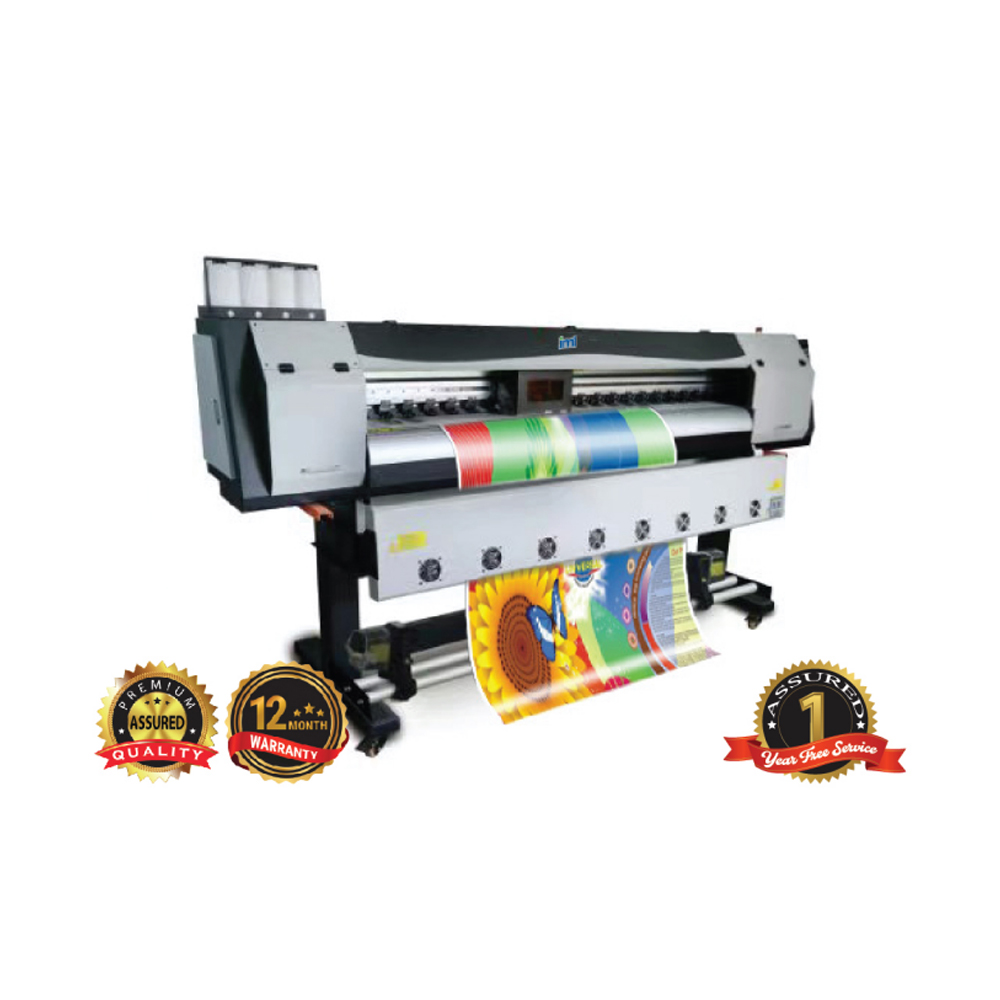

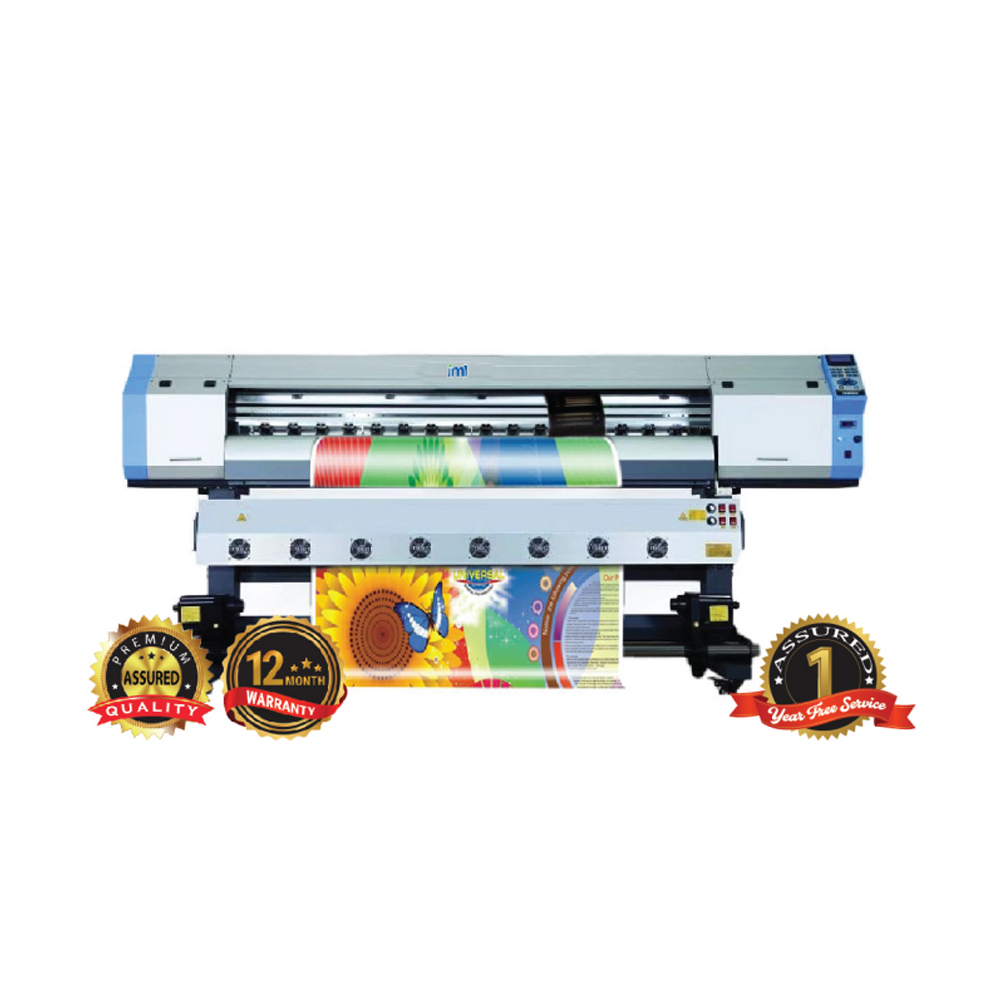

Printer Model: JML-T1802
Print Head: Epson i3200, 1–2 Head

Warranty Spare Parts: Mother Board – 1 year

Ink Type: Eco Solvent Ink
Ink Colors: C, M, Y, K

Maximum Printing Width: 1.8 m

Print Speed:

• Epson i3200 (2 Heads):
  • High Speed Mode: 360 × 1800 dpi (4 pass) – 48 sqm/h
  • Standard Mode: 720 × 1200 dpi (6 pass) – 38 sqm/h
  • High Quality Mode: 720 × 1080 dpi (8 pass) – 28 sqm/h
• Epson i3200 (1 Head):
  • High Speed Mode: 360 × 1800 dpi (4 pass) – 24 sqm/h
  • Standard Mode: 720 × 1200 dpi (6 pass) – 19 sqm/h
  • High Quality Mode: 720 × 1080 dpi (8 pass) – 14 sqm/h
• Epson DX5 (2 Heads):
  • High Speed Mode: 720 × 720 dpi (4 pass) – 30 sqm/h
  • Standard Mode: 720 × 1080 dpi (6 pass) – 20 sqm/h
  • High Quality Mode: 720 × 1440 dpi (8 pass) – 10 sqm/h

Material: PVC Flex Banner, Self-adhesive Vinyl, One Way Vision, etc.

Ink Cassette Capacity: 5000cc per color

Printing Software: Maintop, Photoprint

Heating System (Three Sections): Pre-heater, Printing Bed Heater, Rear Heater (solvent printer only)
Picture Drying System: Infrared heating with fan drying system

Auto Feeding / Collecting System: Automatic roll-to-roll system

Working Environment: Temperature: 18–35°C, Humidity: 35%–80%

Power Supply: 50Hz, 220V (±10%), >15A, 3KW

Operating System: Windows 7 / 10 (64-bit)

Machine Dimension: 2950 × 760 × 1400 mm
Package Size: 3350 × 740 × 790 mm

Net Weight / Gross Weight: 260 kg / 340 kg
